Mini Force Sensor IN-MI-013

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

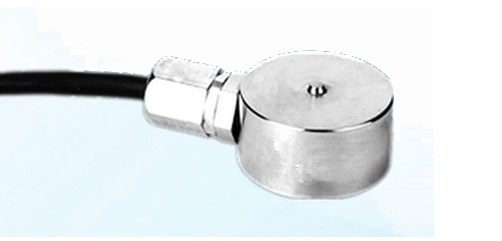

Name: Mini Force Sensor INMI013
Brand: Innovation
Price: 1 USD

Add to Cart

Mini Force Sensor Dimensions:

Mini Force Sensor Parameters:

Capacity	5~100kg	Material	Stainless Steel
Rated Output	1.0-1.5mV/V	Output Impedance	350(1000)±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	0.5%F.S.	Maximum Excitation	5V
Repeatability	0.5%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350(1000)±5Ω	Cable Size	φ2x3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
