5-100KG Stainless Steel Tension S type Load Cell/Force Sensor IN-MS-001

    Buy cheap 5-100KG Stainless Steel Tension S type Load Cell/Force Sensor IN-MS-001 from wholesalers

    Buy cheap 5-100KG Stainless Steel Tension S type Load Cell/Force Sensor IN-MS-001 from wholesalers
    • Buy cheap 5-100KG Stainless Steel Tension S type Load Cell/Force Sensor IN-MS-001 from wholesalers

    5-100KG Stainless Steel Tension S type Load Cell/Force Sensor IN-MS-001

    Ask Lasest Price
    Model Number : IN-MS-001
    Brand Name : Innovation
    Price : USD1-USD100
    Payment Terms : L/C, T/T
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 7-15DAYS
    • Product Details
    • Company Profile

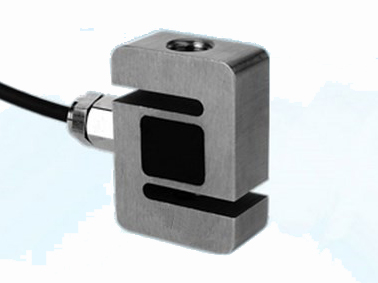

    5-100KG Stainless Steel Tension S type Load Cell/Force Sensor IN-MS-001

    5-100KG Stainless Steel S type Load Cell/Force Sensor IN-MS-001

    Mainly applied in tension and compression testing instruments ,
    automatic equipments and testing fields,such as insertion force test instruments,
    riveting machine,welding machine,hot & cold lamination machine,
    feeling tester for keyboard switch, and etc.



    LOAD CELL



    Capacity5-100KGMaterialStainless Steel
    Rated Output2.0±10%mV/VOutput Impedance350±3Ω
    Zero Balance±2%F.S.Insulation≥5000MΩ/100VDC
    Non-linearity0.05%F.S.Recommended Excitation5-10V
    Hysteresis0.05%F.S.Maximum Excitation15V
    Repeatability0.05%F.S.Compensated Temp Range-10~60ºC
    Creep (30min)0.05%F.S.Operating Temp Range-20~80ºC
    Temp Effect on Output0.05%F.S./10ºCSafe Load Limit120%
    Temp Effect on Zero0.05%F.S./10ºCUltimate Load Limit150%
    Input Impedance385±10ΩCable Sizeφ3x 3m
    Wire ConnectionEx + : Red; Ex - : Black; Sig + : Green; Sig - : White
