Stainless Steel Mini Force Sensor IN-MI-020

Ask Lasest Price
Model Number :	IN-MI-020
Brand Name :	Innovation
Price :	USD1-USD100
Payment Terms :	L/C, T/T
Supply Ability :	1000PCS/MONTH
Delivery Time :	7-15DAYS

Add to Cart

Product Details
Company Profile

Stainless Steel Mini Force Sensor IN-MI-020

Stainless Steel Mini Force Sensor IN-MI-020
Force measurement in small space installation,such as feeling tester for keyboard switch,
compression force measurement for hot and cold lamination machine,
and grasping force measurement for robotic hands

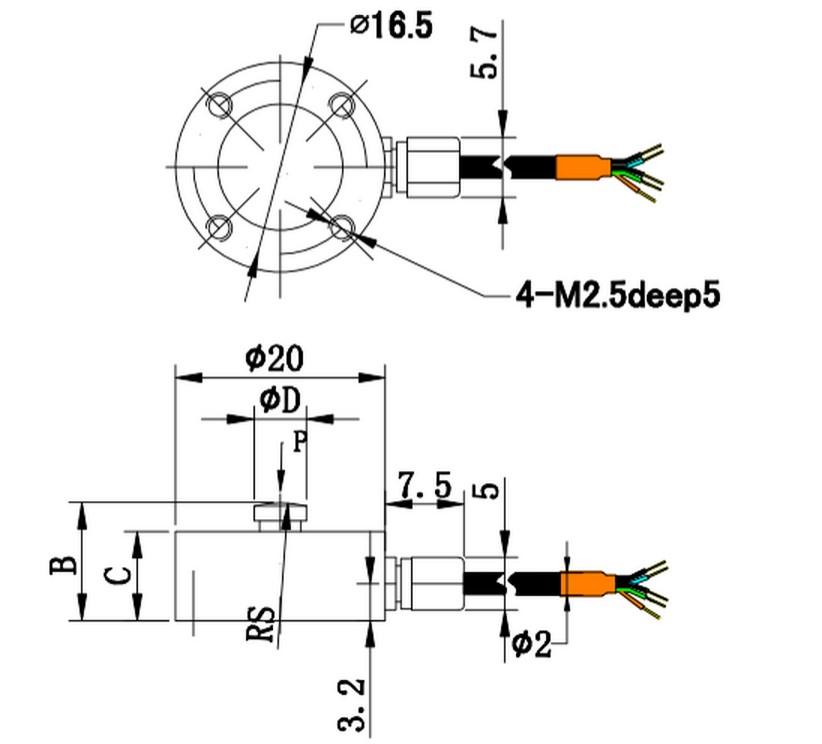

Force Sensor Dimensions:

IN-MI-020

Modle		B	C	D	E	F	G	H	I	J	K	SR	Weight
MI-020-4M	5-500KG	11	8.5	5	4-M2.5Deep5	16.5	3.2	7.5	5	2	5.7	20
MI-020-4M	1-2T	11	8.5	6	4-M2.5Deep5	16.5	3	7.5	5	2	5.7	20
MI020-H5-4M	50-100KG	5	4.5	2.5	4-M2.5	16.5	1.7	0	0	2	0	10

Force Sensor Parameters:

Capacity	5~2000kg	Material	Stainless Steel
Rated Output	1.0-1.5mV/V	Output Impedance	350(700)±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	0.5%F.S.	Maximum Excitation	5V
Repeatability	0.5%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350(700)±5Ω	Cable Size	φ(2-3) x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
