Alloy Steel Stainless Steel 50KG-10T Tension S Type Load Cell IN-MS-007

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: Alloy Steel Stainless Steel 50KG10T Tension S Type Load Cell INMS007
Brand: Innovation
Price: 1 USD

Add to Cart

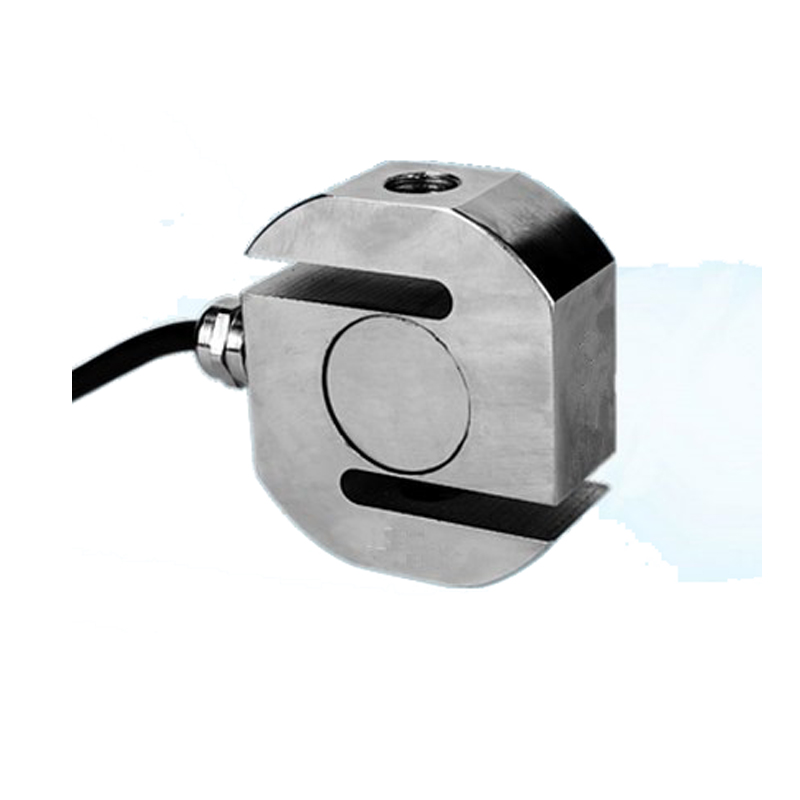

IN-MS-007 Alloy steel Stainless Steel 50KG-10T Tension S Type Load Cell

Alloy steel Stainless Steel 50KG-10T Tension S Type Load Cell

Load Cell Dimension:

Load Cell Technical Parameter:

Capacity	50KG-10T	Material	/Alloy steel/Stainless Steel
Rated Output	2.0±5%mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.03%F.S.	Recommended Excitation	5-10V
Hysteresis	0.03%F.S.	Maximum Excitation	15V
Repeatability	0.03%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.03%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.025%F.S./10ºC	Safe Load Limit	150%
Temp Effect on Zero	0.025%F.S./10ºC	Ultimate Load Limit	200%
Input Impedance	385±20Ω	Cable Size	φ5x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
