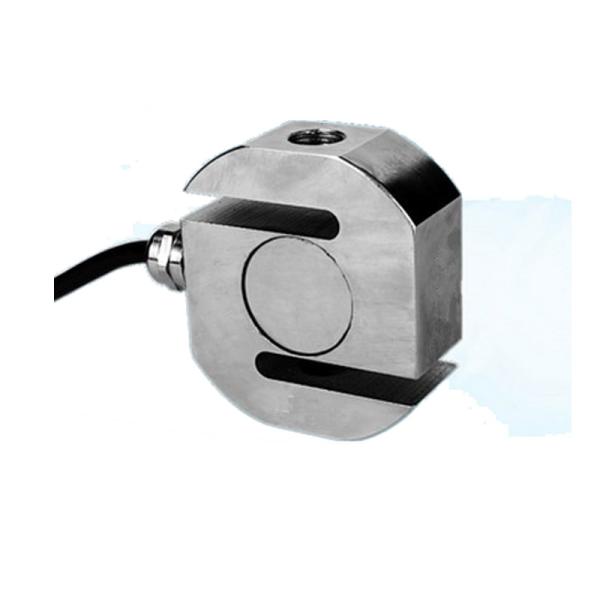

Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008

    Buy cheap Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008 from wholesalers

    Buy cheap Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008 from wholesalers
    • Buy cheap Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008 from wholesalers

    Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008

    Ask Lasest Price
    Brand Name : Innovation
    Model Number : IN-MS-008
    Price : USD1-USD100
    Payment Terms : L/C, T/T
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 7-15DAYS
    • Product Details
    • Company Profile

    Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008

    Alloy Steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008

    Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell
    Load Cell Dimension:



    Load Cell Technical Parameter:

    Capacity100-20000KGMaterialAlloy steel
    250lb-40klbStainless Steel
    Rated Output2.0/3.0±10%mV/VOutput Impedance
    Zero Balance±2%F.S.Insulation
    Non-linearity0.05%F.S.Recommended Excitation
    Hysteresis0.05%F.S.Maximum Excitation
    Repeatability0.05%F.S.Compensated Temp Range
    (30)Creep (30min)0.03%F.S.Operating Temp Range
    Temp Effect on Output0.03%F.S./10ºCSafe Load Limit
    Temp Effect on Zero0.03%F.S./10ºCUltimate Load Limit
    Input Impedance385±10ΩCable Size
    Wire ConnectionEx + : Red; Ex - : Black; Sig + : Green; Sig - : White
