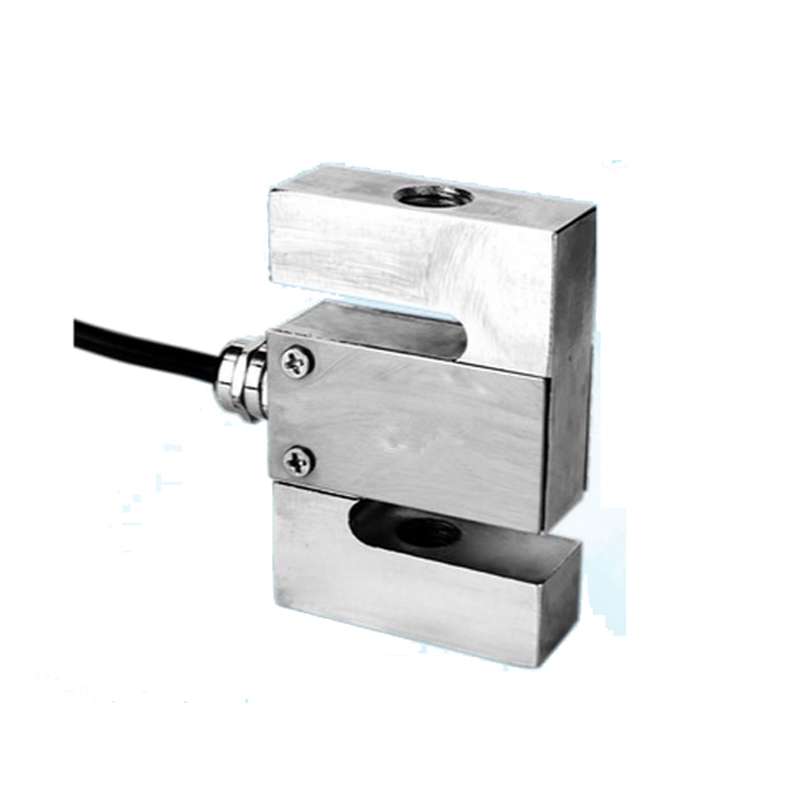

Alloy steel/Stainless Steel Tension S Type Load Cell IN-MS-006

load cell

Capacity	10-5000KG	Material	Alloy steel/Stainless Steel
Rated Output	2.0/3.0±10%mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.03%F.S.	Recommended Excitation	5-10V
Hysteresis	0.03%F.S.	Maximum Excitation	15V
Repeatability	0.03%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.03%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.025%F.S./10ºC	Safe Load Limit	150%
Temp Effect on Zero	0.025%F.S./10ºC	Ultimate Load Limit	200%
Input Impedance	385±5Ω	Cable Size	φ5x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
