Screw Tension and Compression Mini Force Sensor IN-MT-025

Ask Lasest Price
Model Number :	IN-MT-025
Brand Name :	Innovation
Price :	USD100-USD1000
Payment Terms :	L/C, T/T
Supply Ability :	1000 PCS/MONTH
Delivery Time :	7-15 DAYS

Add to Cart

Product Details
Company Profile

Screw Tension and Compression Mini Force Sensor IN-MT-025

Screw Tension and Compression Mini Load Cell IN-MT-025

Mainly applied in tension and compression testing instruments , automatic equipments and testing fields,such as insertion force
test instruments,riveting machine,welding machine,hot & cold lamination machine,feeling tester for keyboard switch, and etc.

Load Cell Parameters:

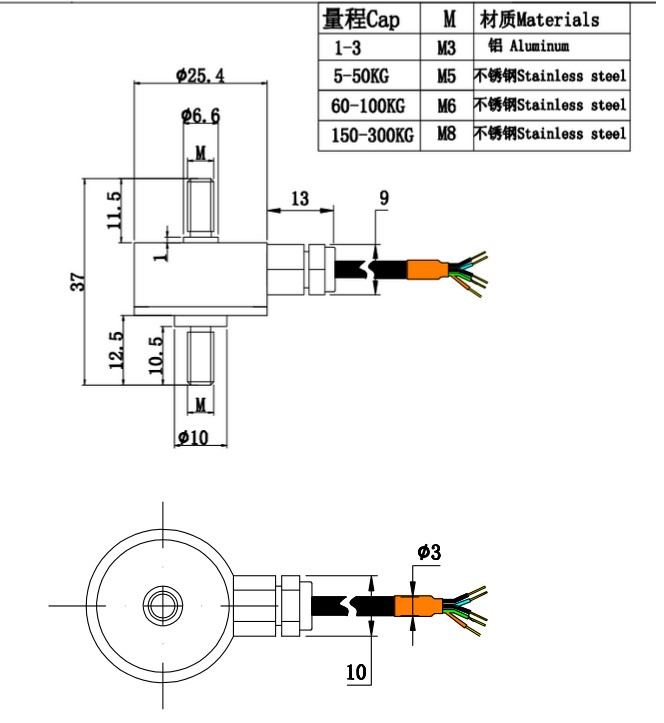

RANGE	A	B	C	D	E	F	G	H	I	J
1-3kg	M3	0	8.5	8.5	7.5	31	0	10	4	5
5-50kg	M5	6.6	11.5	12.5	10.5	37	1	10	13	9
60-100kg	M6	6.6	11.5	12.5	10.5	37	1	10	13	9

Capacity	1-100kg	Material	/Aluminum/Stainless Steel
Rated Output	2.0±10%mV/V	Output Impedance	700±5Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.1-0.5%F.S.	Recommended Excitation	5-10V
Hysteresis	0.1-0.5%F.S.	Maximum Excitation	15V
Repeatability	0.1-0.5%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.05%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	1.2
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	1.5
Input Impedance	700±5Ω	Cable Size	φ3x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig -

Screw Tension and Compression Mini Force Sensor IN-MT-025
