30KV Charging Generator- DC303

    Buy cheap 30KV Charging Generator- DC303 from wholesalers

    Buy cheap 30KV Charging Generator- DC303 from wholesalers
    • Buy cheap 30KV Charging Generator- DC303 from wholesalers

    30KV Charging Generator- DC303

    Ask Lasest Price
    Model Number : DC303
    Brand Name : Innovation
    Price : USD1-USD1000
    Payment Terms : L/C, T/T
    Supply Ability : 1000SET/MONTH
    Delivery Time : 7-15DAYS
    • Product Details
    • Company Profile

    30KV Charging Generator- DC303

    30KV Charging Generator- DC303

    Technical Specifications


    ModelDC302DC303
    Input Voltage100V～240VAC100V～240VAC
    Output Voltage0-20kv Adjustable0-30kv Adjustable
    Max Output Current5mA5mA
    Max Output Power100W150W
    Output Polarity- Negative/+ Positive- Negative/+ Positive
    Working Temperature-15℃～50℃-15℃～50℃
    Output StabilityMax Load 1％Max Load 1％
    Output20KV*230KV*2
    Size213*154*74mm213*154*74mm
    Weight2.2kg

    2.2kg

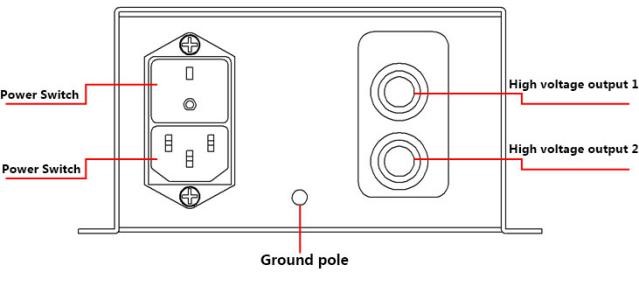

    Installation and Fixation

    Install the host in the right placeAccording to own needs to choose the installation location
    Ground the host correctlyFixed the high pressure generator in need position
    Connect the high voltage output line with the static generator systemConnect the output end of the power adapter to the power input
    Connect power adapter to power supply

    Setting

    30KV Charging Generator


    Control Panel


    (1) OFF:Turn off NO:Turn on

    (2) Output polarity

    N: Negative P:Positive

    (3) Current gear/Top gear(Maximum 16 gears)(4) Real-time voltage display
    (5) Alarm indicator light: Ground and high pressure alarm(The indicator light is always on.)(6) System switch
    (7) Increase output voltage(8) Decrease output voltage
    (9) Infrared receiver




    Infrared remote controller
