Industrial Control Load Cell

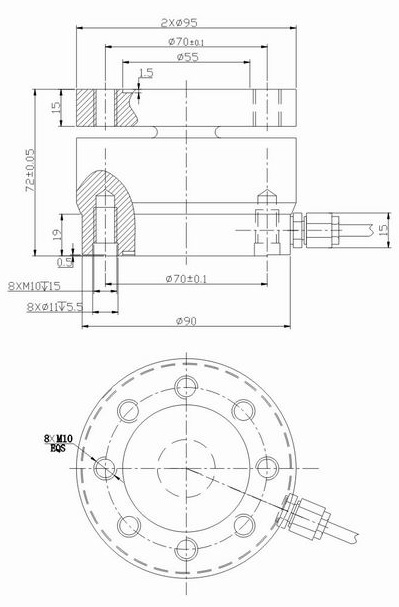

Load Cell Dimension

Load Cell Parameter:

	UNIT	TECHNICAL DATA
Rated capacities(Emax)	t	5
Sensitivity	mV/V	2.0±0.02
Total error	F.S	±0.1%
Creep error(30min)(30)	F.S	±0.05%
Zero balance	F.S	±1%
TCO	F.S/ºC	±0.05% / 10
TC SPAN	F.S/ºC	±0.05% / 10
Input impedance	Ω	700±20
Output impedance	Ω	702±3
Insulation impedance	MΩ	≥5000
Temperature range, compensated	ºC	-10 ~ +40
Temperature range, operating	ºC	-30~ +70
Maximum safe overload	F.S	120%
Ultimate overload	F.S	150%
Excitation, recommend	V	10-12V DC
Excitation, maximum	V	15V DC
Protection class		IP68
Construction		Alloy Steel
Cable	m	Length: 5
Cable	mm	Diameter: φ5
Wiring		Exc+( Red) Exc-(Black) Sig+(Green) Sig-(White)
