Load Cell for Metal Materials Research and Production IN-CJL-q

Load cell for metal materials research and production

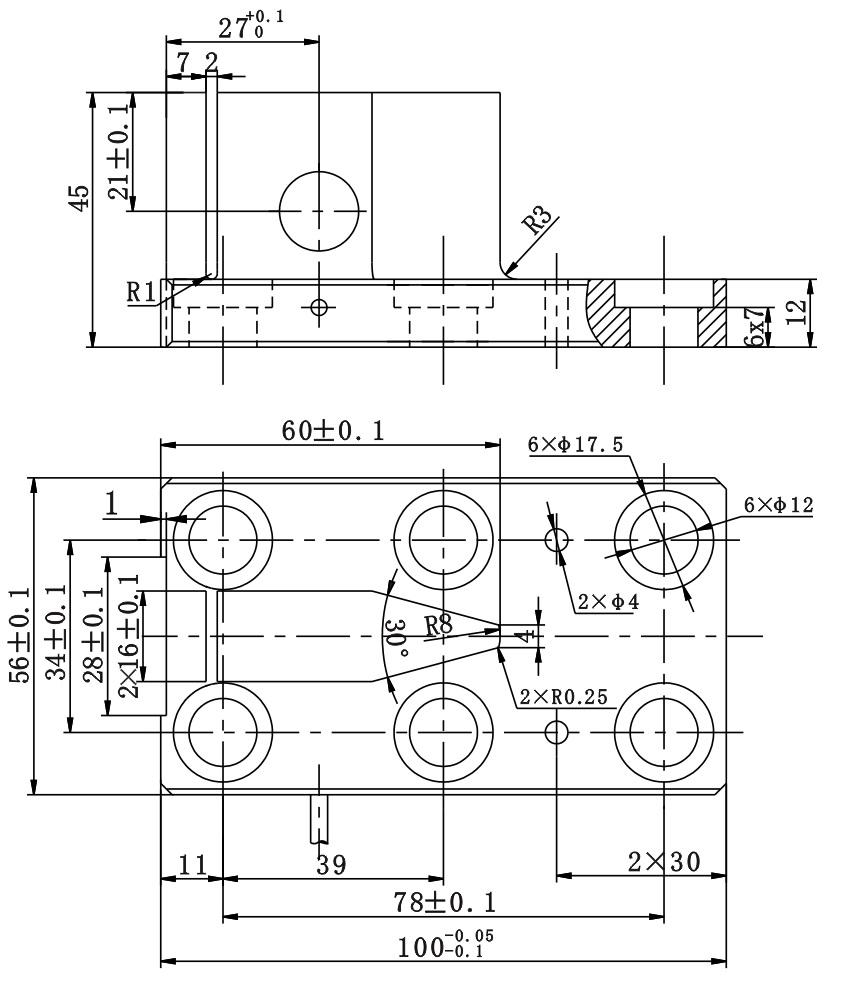

Load Cell Dimension:

Load Cell Technical Parameter:

ItemsUNITTECHNICAL DATA
Rated capacities(Emax)N30k
SensitivitymV/V1.0±0.5
Total errorF.S≥1%
Creep error(30min)F.S±0.1%
Zero balanceF.S±1%
TCOF.S/℃±0.1% / 10
TC SPANF.S/℃±0.1% / 10
Input impedanceΩ350±20
Output impedanceΩ352±3
Insulation impedance≥5000
Temperature range, operating-30~ +70
Maximum safe overloadF.S150%
Ultimate overloadF.S200%
Excitation, recommendV10-12V DC
Excitation, maximumV15V DC
Protection classIP67
ConstructionW18Cr4V
CablemLength: 5
mmDiameter: φ3
WiringExc+(Red) Exc-(Black) Sig+(Green) Sig-(White)
