Single Point Load Cell - IN-D42

Rated load: 100~500(kg)

Precision: C2

FEATURES:

Aluminum-alloy; Colourless anodized;

Hermetically sealed with glue to IP65.

APPLICATIONS:

Electronic counting scales, platform scales etc.

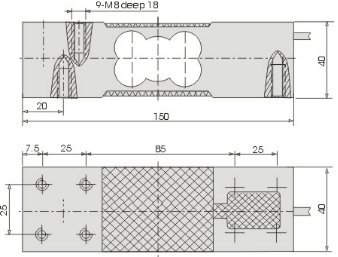

DIMENSIONS:

Size: 150x40x40(mm) Thread hole: 9-M8

load cell

LOAD CELL PARAMETERS:
Comprehensive error: 0.017%F.S & 0.02%F.S	Insulation resistance: ≥5000MΩ(100VDC)
Rated output: 2±0.1mV/V	Excitation voltage: 9VDC~12VDC
Non-linearity: 0.017%F.S & 0.02%F.S	Compensated temp.range: -10℃~+40℃
Hysteresis: 0.02%F.S	Use temp.range: -20℃~+60℃
Repeatability: 0.01%F.S & 0.02%F.S	Temp.effect on zero: 0.017%F.S/10℃ & 0.03%F.S/10℃
Creep: 0.017%F.S/10min & 0.02%F.S/10min	Temp.effect on span: 0.014%F.S/10℃ & 0.02%F.S/10℃
Zero balance: ±1%F.S	Safe overload: 120%
Input resistance: 405±10Ω	Ultimate overload: 150%
Output resistance: 350±3Ω	Defense class: IP67&IP68
