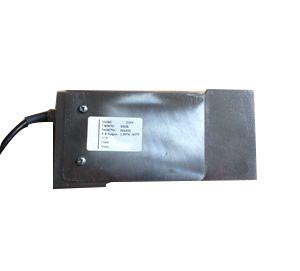

    Single Point Stainless Steel Load Cell IN-60048

    Ask Lasest Price
    Brand Name : Innovation
    Model Number : IN-60048
    Price : USD1-USD100
    Payment Terms : L/C, T/T
    Supply Ability : 1000PC/MONTH
    Delivery Time : 7-15DAYS
    • Product Details
    • Company Profile

    Single Point Stainless Steel Load Cell IN-60048

    Single Point Stainless Steel Load Cell-60048

    Interchangeable Products
    • Sensortronics 60048SS Load Cell
    • NCI Mark V Load Cell
    • Weigh-Tronix Mark V Load Cell

    Load Cell Dimension:

    Load Cell Parameters:

    Capacities25LB, 50LB, 100LB, 200LB, 400LB, 500LB, 1K LB
    Rated Output2.0 mV/V
    Safe Overload150%FS
    Excitation Voltage10-20V AC/DC
    Input Resistance385 ± 10 OHMS
    Output Resistance350 ± 3 OHMS
    Zero Balance±1.00%FS
    Seal TypeEnvironmentally sealed, potted IP67
    Non-linearity±0.03%FS
    Hysteresis±0.02%FS
    Repeatablity±0.02%FS
    Creep±0.03%FS
    Compensated Temperature Range:-10℃ - +40℃
    Temperature Effect on Zero±0.02%FS/℃
    Temperature Effect on Output±0.001%FS/℃
    Insulation Resistance>5000 MEGOHMS
    Load Cell Cable4 Conductor, 10 FT
    Load Cell Wiring

    Green +EXC

    Black –EXC

    White +SIG

    RED -SIG

    Braid/Yellow: Shield
