Single Beam Load Cell IN-BLF

    Buy cheap Single Beam Load Cell IN-BLF from wholesalers

    Buy cheap Single Beam Load Cell IN-BLF from wholesalers
    • Buy cheap Single Beam Load Cell IN-BLF from wholesalers

    Single Beam Load Cell IN-BLF

    Ask Lasest Price
    Brand Name : Innovation
    Model Number : IN-BLF
    Price : USD1-USD100
    Payment Terms : L/C, T/T
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 7-15 DAYS
    • Product Details
    • Company Profile

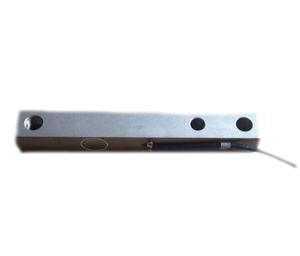

    Single Beam Load Cell IN-BLF

    Single beam load cell: IN-BLF
    Interchangeable Products
    • Fairbanks 3-52921-1 LOAD CELL
    • Fairbanks 3-53581-X LOAD CELL
    • HBM BLF LOAD CELL
    • Rice Lake RLBLF LOAD CELL

    Load Cell Parameters:

    Load Cell Parameters:

    ItemsUNITTECHNICAL DATA
    Capacitieslb1.5K,2.5k,5k
    Rated outputmV/V2
    Safe overloadFS150%
    Excitation voltageV10-20 AC/DC
    Input resistanceOHMS1080±10
    Output resistanceOHMS1000±5
    Zero balanceFS±1.00%
    Seal typeFSENVIRONMENTALLY SEALED
    Non-linearityFS±0.03%
    HysteresisFS±0.03%
    RepeatabilityFS±0.01%
    CreepFS±0.02%
    Compensated temperature rangeºC-10 ~ +40
    Temperature effect on zeroFS/ºC±0.0027%
    Temperature effect on outputFS/ºC±0.0015%
    Insulation resistanceMEGOHMS>5000
    Load cell cable4 conductor, 30 FT
    Load cell wiringGreen +EXC Black -EXC White +SIG Red -SIG Braid/yellow: shield
    Quality Single Beam Load Cell IN-BLF for sale
