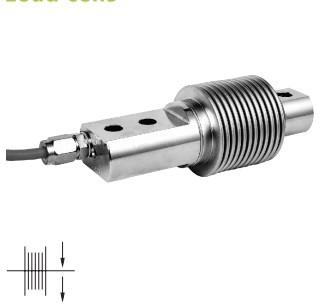

Single Ended Load Cell IN355-02

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: Single Ended Load Cell IN35502
Brand: Innovation
Price: 1 USD

Add to Cart

Single Beam Load Cell IN355-02

Capacity: 10kg to 500kg

Load Cell Parameters:

Item	Unit	Parameter
Accuracy Class to OIML R60		C2	C3
Maximum Capacity (Emax)	Kg	10, 20,50, 75, 100, 200, 250, 300, 500
Minimum LC Verification Interval (Vmin)	% of Emax	0.0200	0.0100
Sensitivity (Cn)/Zero Balance/	mV/V	2±0.002/0±0.02
Temperature Effect on Zero Balance (TKo)	% of Cn/10K	±0.02	±0.0170
Temperature Effect on Sensitivity(TKo)	% of Cn/10K	±0.02	±0.0170
Hysteresis Error (dhy)	% of Cn	±0.0270	±0.0180
Non-linearity(din)	% of Cn	±0.0250	±0.0167
Creep(dcr) over 30 min	% of Cn	±0.0233	±0.0167
Input(RLC)&Output Resistance(R0) &	Ω	400±10 & 352±3
Nominal Range of Excitation Voltage (Bu)	V	5-15
Insulation Resistance(Ris) at 50 Vdc	MΩ	≥5000
Service Temperature Range(Btu)	ºC	-30...+70
Safe Load Limit (EL) &Breaking Load(Ed)&	% of Emax	120&200
Protection Class According to EN 60 529(IEC 529)		IP68
Material: measuring element : Cable fitting Cable sheath		Stainless or Alloy Stell Stainless steel or nickel-plated brass PVC

Maximum Capacity(Emax)	kg	10	20	50	75	100	200	250	300	500
Deflection at Emax(snom), approx	mm	0.29						0.39
Weight(G), approx.	kg	0.5
Cable :Diameter :φ5mm Length	m	3
