Quick Release Mooring Hook Force Pin-CP3100P

Ask Lasest Price
Brand Name :	Innovation
Model Number :	CP3100P
Price :	USD1-USD100
Payment Terms :	L/C, T/T
Supply Ability :	1000PCS/MONTH
Delivery Time :	7-15DAYS

Add to Cart

Product Details
Company Profile

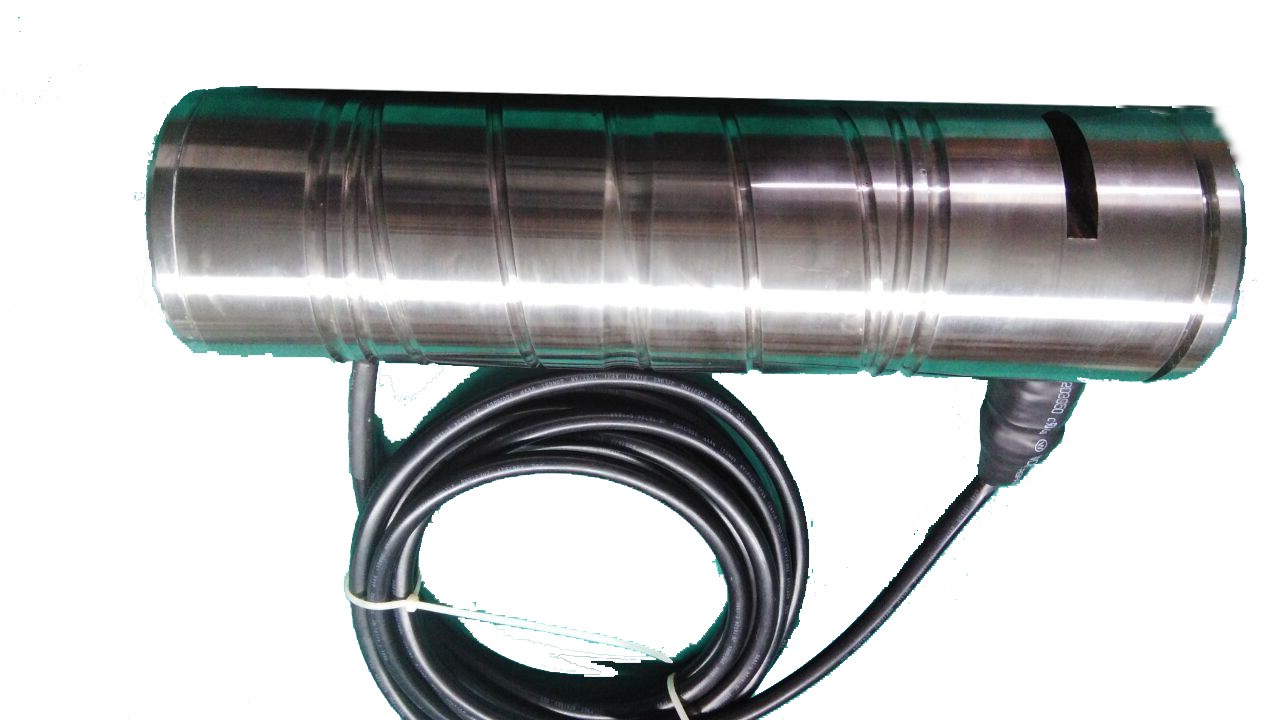

Quick Release Mooring Hook Force Pin-CP3100P

Quick release mooring hook Force Pin-CP3100P

Canister, high capacity load cell (up to 500 tons)

- Totally made of stainless steel

- Protection IP 67

- Pendular technology - Self restoring

- Available in C1,5 (1'500 d) OIML / R 60

- Matched impedance and sensitivity (for parallel connection)

- A whole range of mounting accessories is available

- Available options (non exhaustive list) :

o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da

o high service temperature (up to180 °C)

o protection IP68

Load Pin Application:

- Force pin used for quick release mooring hooks

3100P : (3) - 5 - (7.5) - 10 - (15) - 20 - 30 - 50 - (75) - 100 - (150) - 200 - 300 - 500 t

Load Pin Features

Specifications C 1.5

Accuracy class 1500 d OIML -

Combined error < ± 0.035 % F.S.

Linearity error < ± 0.03 % F.S.

Repeatability error < ± 0.015 % F.S.

Creep error over 30 min. < ± 0.035 % F.S.

Zero shift after loading < ± 0.0075 % F.S.

Reference temperature 23 °C

Nominal temperature range -10...+45

Service temperature range -30...+70

Storage temperature range -50...+85

Temperature coefficient of the sensitivity < ± 0.017 % F.S./10°C

Temperature coefficient of zero signal < ± 0.025 % F.S./10°C

Zero balance± 0.02 mV/V

Sensitivity tolerance < ± 0.2 %

Insulation resistance (50V) > 5000 Megaohm

Reference excitation voltage 10 VDC

Nominal range of excitation voltage 3..12 VDC

Nominal sensitivity 1.5 mV/V

Safe load limit 1150 % F.S.

Breaking load >300 % F.S.

Static lateral force limit 15 % F.S.

Permissible dynamic loading 50 % F.S.

Input resistance 350..702 ± 2 Ohm

Output resistance 350..702 ± 2 Ohm

Quick Release Mooring Hook Force Pin-CP3100P
