    Static Portable Truck Scale - Four Pads IN-ST01

    Ask Lasest Price
    Brand Name : INNOVATION
    Model Number : IN-ST01
    Price : USD1-USD100
    Payment Terms : L/C, T/T
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 7-15DAYS
    • Product Details
    • Company Profile

    Static Portable Truck Scale - Four Pads IN-ST01

    Static Portable Truck Scale -Four Pads IN-ST01

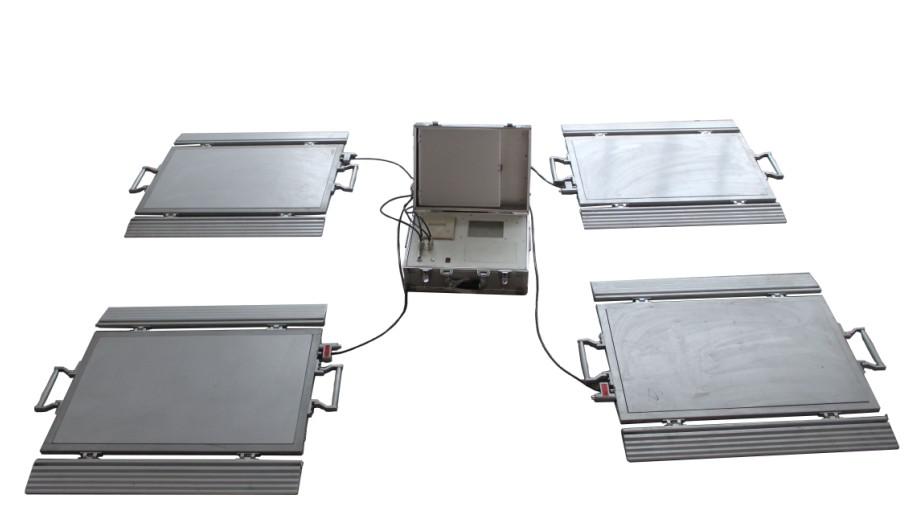

    portable truck scale weighing pad


    Stable test results – nearly test results in the repeat testing for one axle

    Static portable truck scale -Four pads IN-ST01 Can store as many as 10000 vehicle testing records;

    Four channels that can be connected to Four weighing pad and develop to be static weighing,display four wheel weight,

    each axle weight and gross weight


    Dispay Uints: kg

    Max load per platform 10000 kg, total load per 4 platforms 40000 kg

    Precision:0.3%

    power supply: built-in 6V/10AH leading acid accumulator, and can connect with DC source (7.5V/3A or 12V/3A)


    Parts:

    · 4pcs portable weighing pads

    · 8pcs slope

    · Four channels-Static weighing indicator

    · RS232 port is used to communicate with PC and printer

    weighing indicator for Static portable truck scale -Four pads IN-ST01

    size: 400mm X 300mm X 180 mm

    netweight: 8KG

    material: ABS structural foam

    weighing pads

    size:714 mm(L) X419mm(W)X 18mm(H)

    netweight: 10KG/pcs

    materials: High strength Aluminum alloy

    slope

    size:714mm (L) X150mm(W) X 18(H) mm

    netweight: 5 KG/pcs

    materials: High strength Aluminum alloy


    Parts:

    Static portable truck scale -Four pads IN-ST01 include

    ST-1 weighing pad(The weighing pad’s model can be changed according to customer’s request)


    Static portable truck scale -Four pads IN-ST01 's


    FEATURES:
    Aluminum-alloy; Ultra thin weighpad design;

    Easily mounted / unmounted slope; Hermetically sealed, suits different environment;

    Works both dynamically and statically;

    Can be used to measure axle weight and whole vehicle weight when four weigh-pads are connected together.


    PARAMETER

    Rated load: 10,20,40(t)

    Static comprehensive error(%F.S): 0.1-0.3

    Rated output(mV/V): 1.0±0.1

    Insulation resistance(MΩ): ≥5000(100VDC)

    Non-linearity(%F.S): 0.2

    Compensated temp.range(℃): -10~+50

    Error on corners(%F.S): 0.2

    Use temp.range(℃): -30~+80

    Repeatariy(%F.S): 0.05

    Temp.effect on zero(F.S/10℃): 0.03

    Zero balance(%F.S): ±1

    Temp.effect on span(F.S/10℃): 0.05

    Excitation voltage(VDC): 9~15

    Safe overload(%): 120

    Recommended voltage(V): 10

    Ultimate overload(%): 150

    Defend grade: IP66

    Netweight(kg): 10(20t), 30(40t)

    DIMENSIONS(mm):


    Four channels-Static weighing indicator

    Size: 400mm X 300mm X 180 mm

    ◆ Multiple channel, one weighing indicator Max. can be connected to eight weighing pad

    ◆ Micro printer is embedded in the instrument, the print ticket contains date, time, truck no, ticket no,

    axle weight, joint axle weight, truck weight, overload and executive organization

    ◆ Floating technology is adopted to remove zero drift.

    ◆ Touch screen LCD Monitor, Numbered options,easy

    ◆ RS232 port is used to communicate with PC

    ◆ The instrument can work independently. And it also can upload testing data to computers

    ◆ mature inquiry and statistic function

    ◆ The auto power supply system can be used for providing electricity and charging
