Static Vehicle Axle & Wheel Weighing Pad IN-40H

Ask Lasest Price
Brand Name :	Innovation
Model Number :	IN-40H
Price :	USD5000-USD50000
Payment Terms :	L/C, T/T
Supply Ability :	1000 SET/MONTH
Delivery Time :	7-15 DAYS

Add to Cart

Product Details
Company Profile

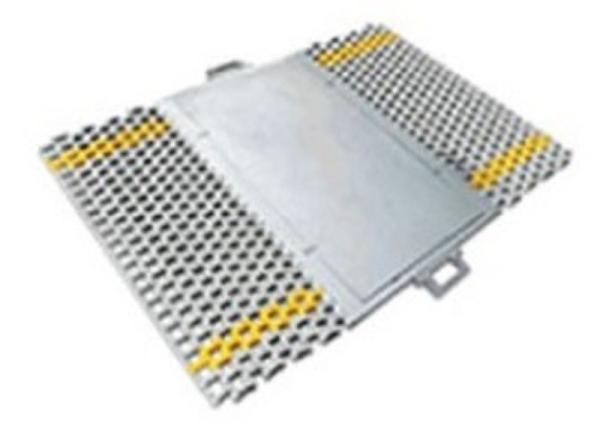

Static Vehicle Axle & Wheel Weighing Pad IN-40H

IN-40H Vehicle Axle & Wheel Weighing Pad

Special Features:

IN-40H Vehicle Axle & Wheel Weighing Pad Product Details

Aluminum-alloy; Ultra thin weighpad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pads are connected together.

IN-40H Vehicle Axle & Wheel Weighing Pad PARAMETER

Rated load: 10, 20, 40(t)
Static comprehensive error(%F.S): 0.1-0.3
Rated output(mV/V): 1.0±0.1	Insulation resistance(MΩ): ≥5000(100VDC)
Non-linearity(%F.S): 0.2	Compensated temp.range(℃): -10~+50
Error on corners(%F.S): 0.2	Use temp.range(℃): -30~+80
Repeatariy(%F.S): 0.05	Temp.effect on zero(F.S/10℃): 0.03
Zero balance(%F.S): ±1	Temp.effect on span(F.S/10℃): 0.05
Excitation voltage(VDC): 9~15	Safe overload(%): 120
Recommended voltage(V): 10	Ultimate overload(%): 150
Defend grade: IP66	Netweight(kg): 10(20t), 30(40t)

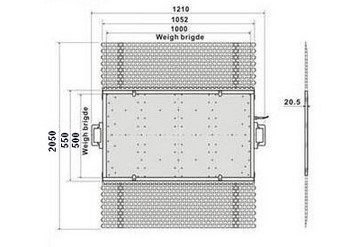

IN-40H Vehicle Axle & Wheel Weighing Pad Dimensions:

The slope length can be changed according to the customer’s demand
