IP69 Single Point Load Cell - IN-PW10A

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: IP69 Single Point Load Cell INPW10A
Brand: Innovation
Price: 1 USD

Add to Cart

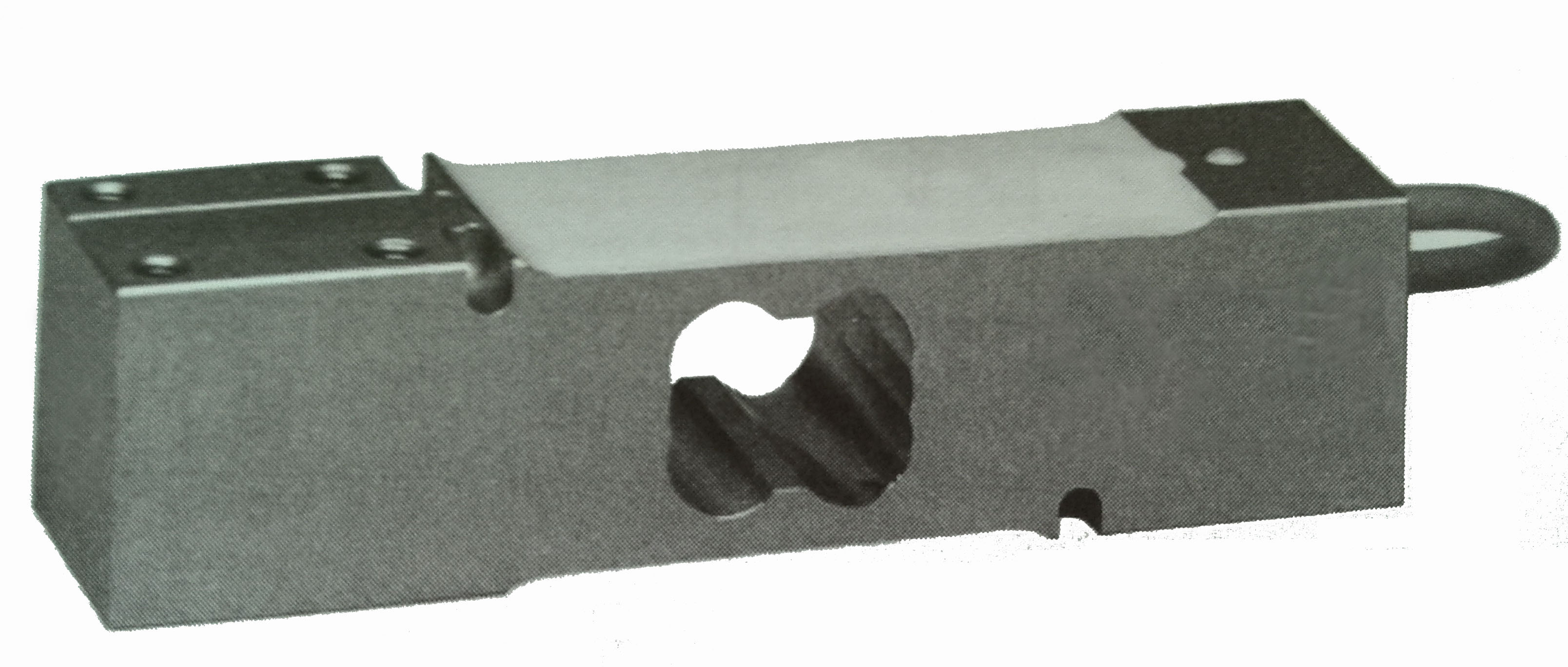

Single Point Load Cell - INPW-10A

Advantage:

IP69 Protection

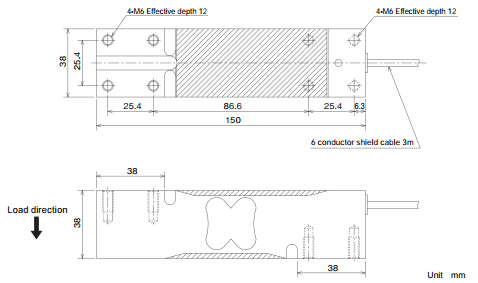

Single Point Load Cell Dimensions:

Single Point Load Cell Technical Parameters:

Model	IN-PW10A-50KG, IN-PW10A-100KG, IN-PW10A-150KG,IN-PW10A-200KG, IN-PW10A-250KG,IN-PW10A-300KG,
Rated Capacity	50,100,150,200,250,300	KG
Rated Output	2.0±0.2	mV/V
Safe Overload	150	%R.C.
Maximum safe overload	300	%R.C.
Maximum safe side overload	300	%R.C.
Zero balance	±6	%R.O.
Non-linearity	0.0166(typ)	%R.O.
Hysteresis	0.0166(typ)	%R.O.
Compensated temperature range	-10 to +40	℃
Safe temperature range	-10 to +50	℃
Temperature effect on zero	0.0140(50/100/200kg), 0.0093(150/300kg), 0.0112(250kg)	%R.O./10K
Temperature effect on span	0.0175(+20 to +40℃), 0.00117(-10 to +20℃)	%R.O./10K
Input resistance	300 to 500	Ω
Output resistance	330 to 430	Ω
Recommended excitation voltage	1 to 12	V
Insulation resistance	2000 or more	MΩ
Degrees of protection	IN67
Cable	6 conductor shield cable 3m
Load cell material	Aluminum
