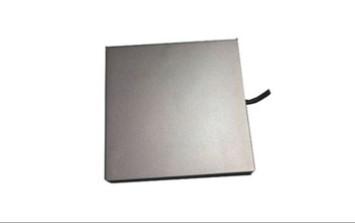

Vehicle Wheel&Axle scale Weighing Pad IN-100A

Ask Lasest Price
Brand Name :	Innovation
Model Number :	IN-100A
Price :	USD1-USD1000
Payment Terms :	L/C, T/T
Supply Ability :	1000PCS/MONTH
Delivery Time :	7-15DAYS

Add to Cart

Product Details
Company Profile

Vehicle Wheel&Axle scale Weighing Pad IN-100A

IN-100A Vehicle Wheel&Axle scale Weighing Pad

Vehicle Wheel&Axle scale Weighing Pad Special features :
Aluminum-alloy; Ultra thin weighpad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pads are connected together

Aluminum-alloy; Ultra thin weighpad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pads are connected together.

Vehicle Wheel&Axle scale Weighing Pad PARAMETERS:

Rated load: 500kg
Static comprehensive error(%F.S): 0.1-0.3
Rated output(mV/V): 0.40±0.1	Insulation resistance(MΩ): ≥5000(100VDC)
Non-linearity(%F.S): 0.2	Compensated temp.range(ºC): -10~+50
Error on corners(%F.S): 0.2	Use temp.range(ºC): -30~+80
Repeatariy(%F.S): 0.05	Temp.effect on zero(F.S/10ºC): 0.03
Zero balance(%F.S): ±1	Temp.effect on span(F.S/10ºC): 0.05
Excitation voltage(VDC): 9~15	Safe overload(%): 120
Recommended voltage(V): 10	Ultimate overload(%): 150
Defend grade: IP66	Netweight(kg): 2

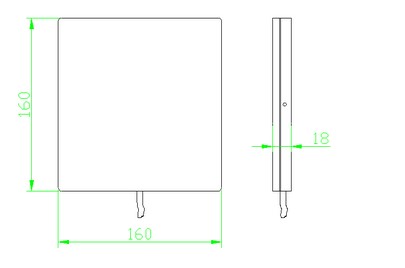

Vehicle Wheel&Axle scale Weighing Pad DIMENSIONS(mm):

Vehicle Wheel&Axle scale Weighing Pad IN-100A
