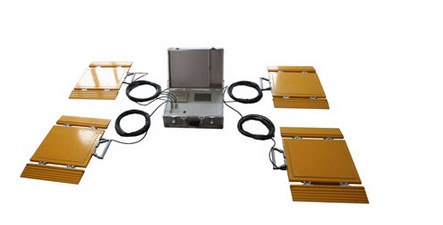

IN-100-1 Four-channels Static Portable Car/Vehicle Weighing System
Four-channels Static Portable Car/Vehicle Weighing System Special
Features:
Stable test results – nearly test results in the repeattesting for
one axle
Canstore as many as 10000 vehicle testing records;
Fourchannels that can be connected to Four weighing pad and develop
to be static weighing,display four wheel weight, each axle weight
and gross weight
Stable test results – nearly test results in the repeat testing for
one axle
Can store as many as 10000 vehicle testing records;
Four channels that can be connected to Four weighing pad and
develop to be static weighing,display four wheel weight,,each axle
weight and gross weight
Dispay uints: kg
Max load per platform 2000 kg, total load per 4 platforms 8000 kg
4 connectors to link the 4 plaforms
Precision: 0.1-0.3%FS
power supply: built-in 6V/10AH leading acid accumulator, and can
connect with DC source (7.5V/3A or 12V/3A)
parts:
4pcs portable weighing pads
8pcs slope
Four channels-Static weighing indicator
RS232 port is used to communicate with PC and printer
Four channels-Static weighing indicator
size: 400mm X 300mm X 180 mm
netweight: 8KG
material: ABS structural foam
weighing pads
size: 405 mm(L) X 345mm(W)X 15mm(H)
netweight:8KG/pcs
materials: High strength Aluminum alloy
slope
size: 405mm (L) X 100mm(W) X 15(H) mm
netweight: 3 KG/pcs
materials: High strength Aluminum alloy
Parts::
CZ-100 weighing pad(The weighing pad’s model can be changed
according to customer’s request)
Four-channels Static Portable Car/Vehicle Weighing System FEATURES:
Aluminum-alloy; Ultra thin weighpad design; Easily mounted /
unmounted slope; Hermetically sealed, suits different environment;
Works both dynamically and statically; Can be used to measure axle
weight and whole vehicle weight when four weigh-pads are connected
together.
PARAMETER
| Rated load: 500kg,1t,2t |
| Static comprehensive error(%F.S): 0.1-0.3 |
| Rated output(mV/V): 1.0±0.1 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Non-linearity(%F.S): 0.2 | Compensated temp.range(℃): -10~+50 |
| Error on corners(%F.S): 0.2 | Use temp.range(℃): -30~+80 |
| Repeatariy(%F.S): 0.05 | Temp.effect on zero(F.S/10℃): 0.03 |
| Zero balance(%F.S): ±1 | Temp.effect on span(F.S/10℃): 0.05 |
| Excitation voltage(VDC): 9~15 | Safe overload(%): 120 |
| Recommended voltage(V): 10 | Ultimate overload(%): 150 |
| Defend grade: IP66 | Netweight(kg): 8 |
Four-channels Static Portable Car/Vehicle Weighing System
DIMENSIONS(mm):
Size: 400mm X 300mm X 180 mm
◆ Four channels that can be connected to Four weighing pad
◆ Micro printer is embedded in the instrument, the print ticket
contains date, time, truck no, ticket no, axle weight, joint axle
weight, truck weight, overload and executive organization
◆ Floating technology is adopted to remove zero drift.
◆ Touch screen LCD Monitor, Numbered options,easy
◆ RS232 port is used to communicate with PC
◆ The instrument can work independently. And it also can upload
testing data to computers
◆ mature inquiry and statistic function
◆ The auto power supply system can be used for providing
electricity and charging
